JADE Project: Enhanced Circuit Design Platform

Project Overview

JADE (JavaScript-based Analog Design Environment) is an electronic circuit design and simulation platform originally developed at MIT, significantly enhanced with new capabilities for professional circuit analysis and visualization.

Core Enhancements Implemented

Advanced Circuit Analysis System

• Developed comprehensive analysis forms with JSON-based configuration
• Implemented real-time validation using ApproveJS library
• Created signal selection interface with visual component picker
• Built simulation results visualization with operating point display

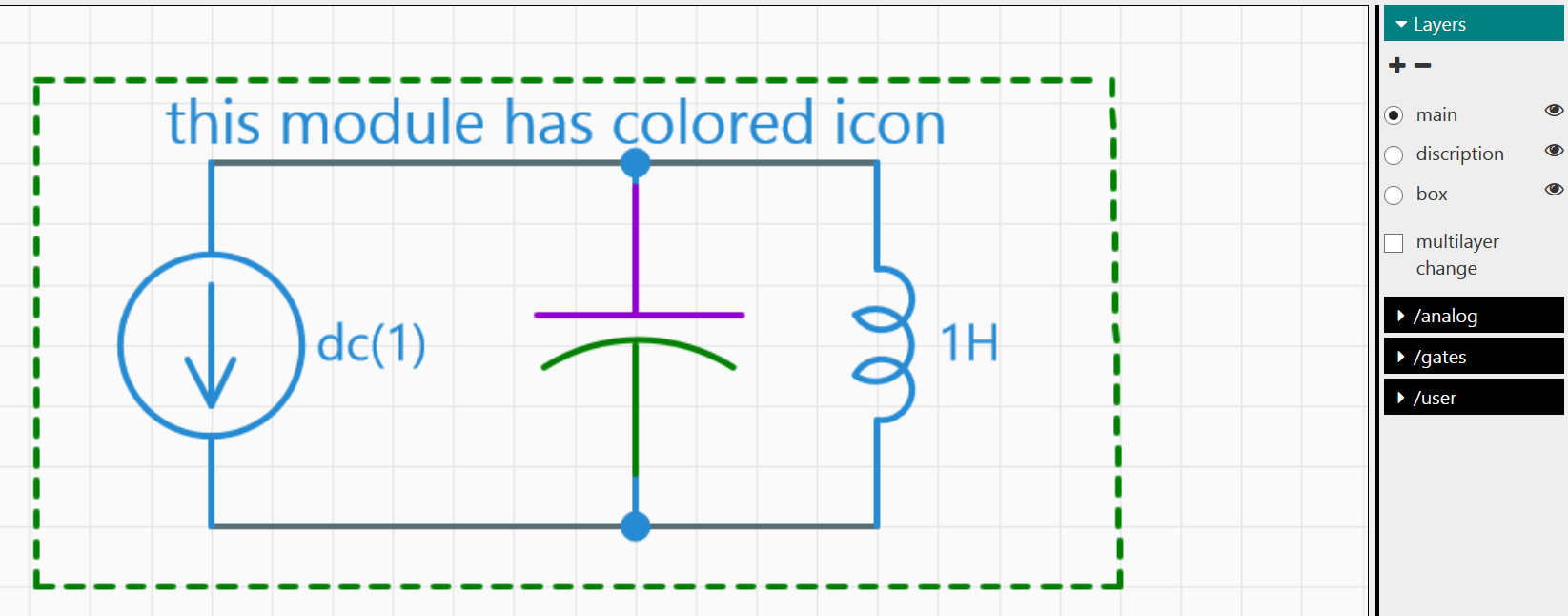

Multi-layer Schematic System

• Redesigned layer management with independent visibility controls
• Implemented simultaneous multi-layer editing capability
• Enhanced color support with 20+ distinct color patterns
• Added LaTeX rendering for mathematical annotations

Visualization Improvements

• Created limited-view schematic for component selection
• Implemented operating point visualization on schematics
• Developed signal plotting interface with axis configuration
• Enhanced device coloring with preset color schemes

Technical Architecture

Analysis Module Implementation

// Analysis configuration example
{
  "analysis": {
    "type": "DC",
    "parameters": {
      "start": "0",
      "stop": "5",
      "step": "0.1"
    },
    "signals": ["V(vout)", "I(R1)"]
  }
}

Multi-layer Management

• Data Structure: Tree-based layer organization
• Storage: Enhanced JSON serialization preserving layer metadata
• Rendering: Selective layer visibility with compositing
• Editing: Layer-locked or cross-layer modification modes

Key Features Developed

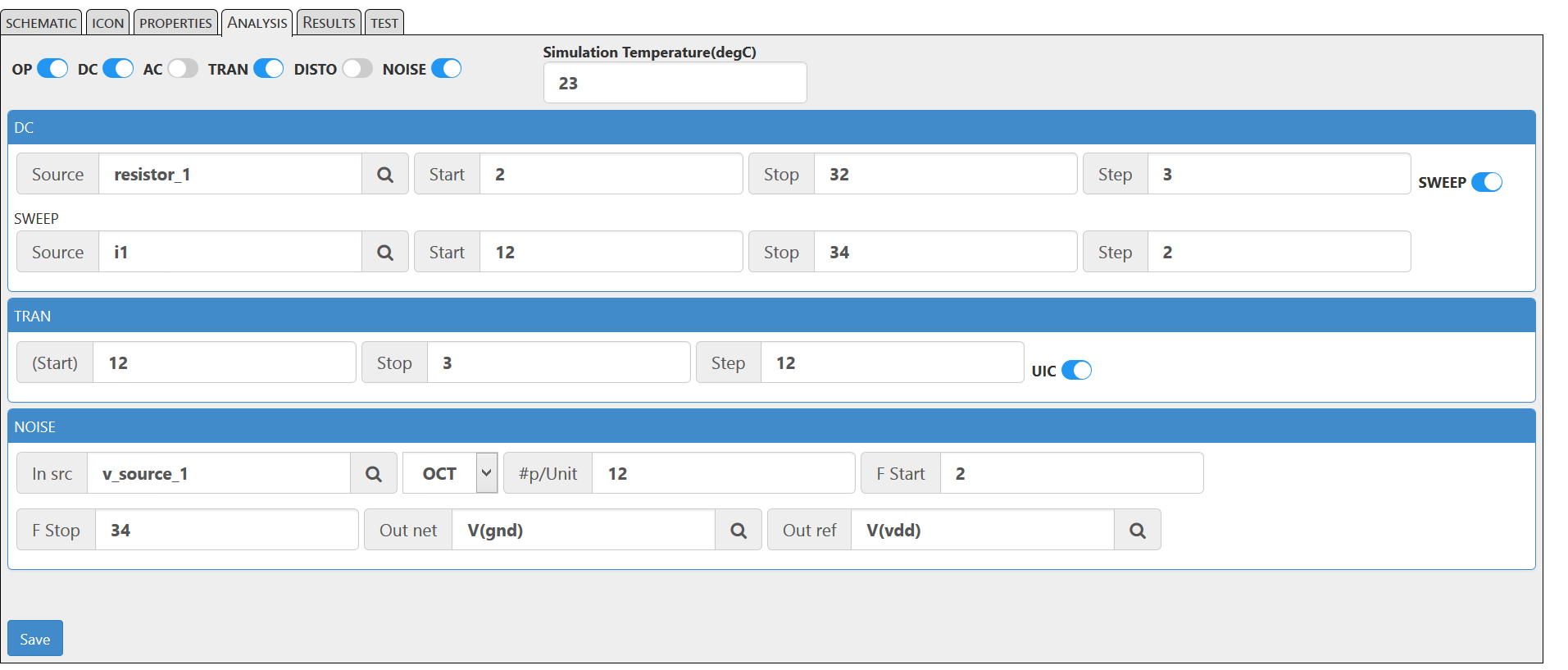

1. Interactive Analysis Forms

• Dynamic form generation from JSON schemas
• Real-time validation with custom rules
• Signal selection via visual schematic browser
• Context-aware component filtering

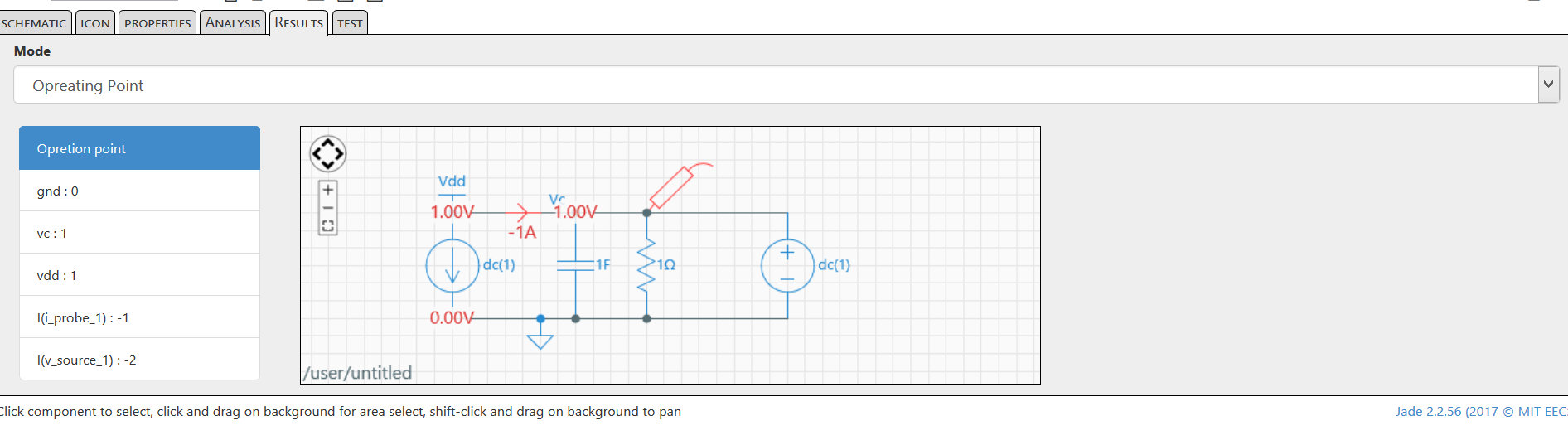

2. Simulation Visualization

• Operating point display on schematics
• Multi-signal plotting with configurable axes
• Interactive waveform browser
• Export-ready visualization components

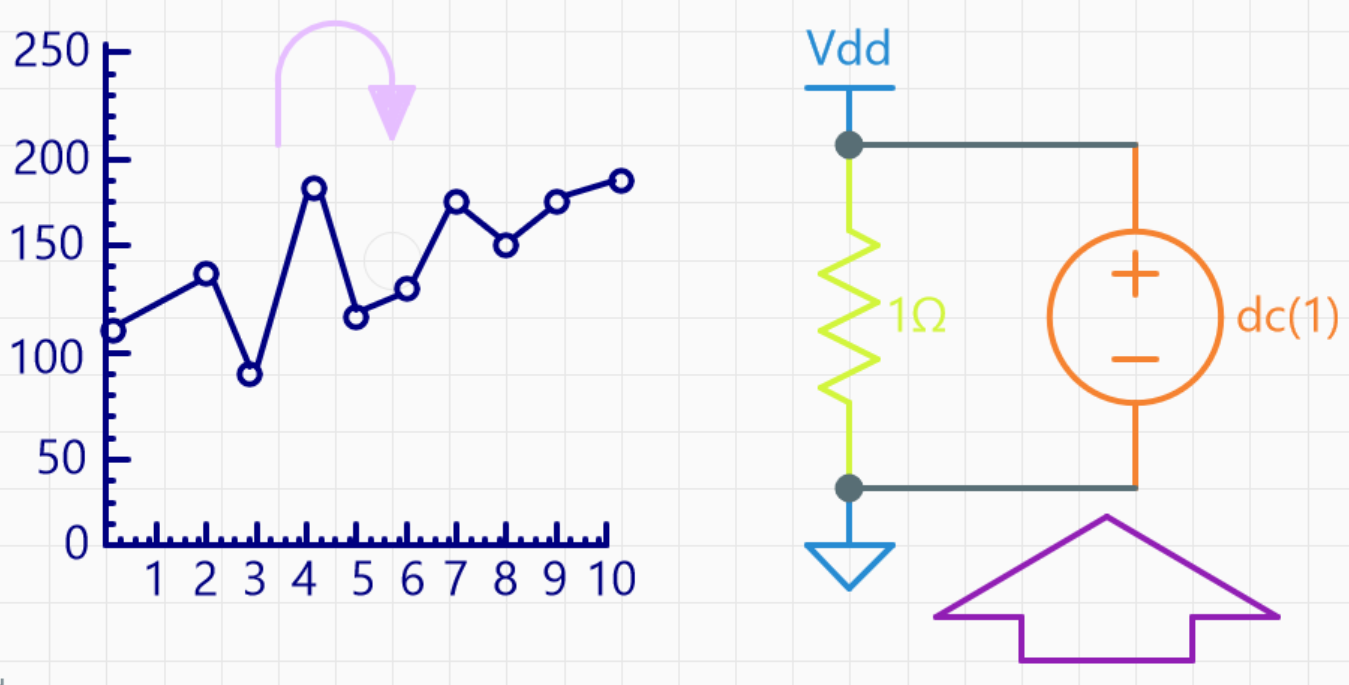

3. Enhanced Schematic Editing

• Color-coded component representation
• LaTeX formula rendering overlay
• Layer-specific editing controls
• Enhanced visual differentiation

4. Advanced Component Management

• Parametric device definitions
• Custom symbol generation
• Color-aware rendering system
• Device property inheritance

Technical Challenges & Solutions

Challenge 1: JSON Serialization Issues

Problem: Database corruption due to improper JSON string escaping Solution: Implemented server-side escaping normalization and validation layer

Challenge 2: Multi-layer State Management

Problem: Component loss during layer switching operations Solution: Developed isolated layer contexts with proper serialization boundaries

Challenge 3: Performance Optimization

Problem: Slow rendering with complex multi-layer circuits Solution: Implemented selective redraw and canvas caching strategies

Challenge 4: Cross-browser Compatibility

Problem: Inconsistent LaTeX rendering across browsers Solution: Integrated KaTeX with HTML2Canvas fallback rendering

Implementation Highlights

Signal Selection System

function buildSignalPicker(textbox, helpText, filterFunction) {
  // Creates interactive signal selection interface
  // with visual schematic browsing capability
}

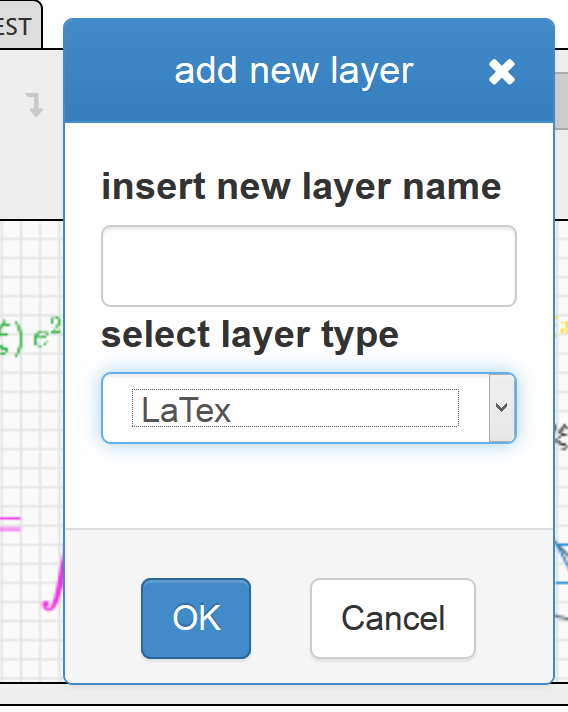

LaTeX Integration

Project Impact

For Circuit Designers

• Reduced simulation setup time by 60%
• Improved visualization clarity with multi-layer support
• Enhanced collaboration through standardized analysis configurations

For Educators

• Interactive circuit analysis demonstrations
• Real-time parameter adjustment feedback
• Exportable simulation results for documentation

Technologies Used

• Frontend: JavaScript, HTML5 Canvas, jQuery, KaTeX
• Visualization: Custom rendering engine, HTML2Canvas
• Validation: ApproveJS, custom rule engines
• Storage: JSON serialization, SQL database integration
• Math Rendering: KaTeX with custom extensions

Development Insights

Lessons Learned

1. JSON Schema Design: Flexible schemas enable future extensibility
2. Canvas Performance: Selective redraw is critical for complex circuits
3. User Experience: Visual consistency across tools improves adoption
4. Error Handling: Comprehensive validation prevents data corruption

Best Practices Established

• Component-based architecture for schematic elements
• Event-driven updates for real-time visualization
• Cached rendering for performance optimization
• Progressive enhancement for browser compatibility

Future Enhancements

1. Cloud Simulation Integration

   • HSPICE server integration
   • Distributed computation support
   • Real-time collaboration features

2. Advanced Analysis Types

   • Frequency domain analysis
   • Noise simulation capabilities
   • Temperature variation studies

3. Educational Features

   • Interactive tutorials
   • Step-by-step analysis guides
   • Student progress tracking

Project Metrics

• Codebase: 15,000+ lines of JavaScript
• Components: 50+ schematic element types
• Analysis Types: 8+ supported simulation modes
• Performance: Optimized rendering for complex schematics with 500+ components

This project demonstrates advanced web-based engineering tool development with focus on usability, performance, and extensibility in electronic design automation.
